AQUILA - Salesforce Integration

Overview

The Salesforce integration enables you to monitor your Salesforce instance. Salesforce is a customer relationship management (CRM) platform that supports businesses in managing marketing, sales, commerce, service, and IT teams from a unified platform accessible from anywhere.

Data Streams Logs

  • Salesforce Apex Logs
  • Salesforce Login Logs
  • Salesforce Logout Logs
  • Salesforce SetupAudit Logs

Configuration

To configure the Salesforce integration, you need the following information:

  • Create New User Account for the Integration

  • Salesforce instance URL

  • Client key and client secret for authentication

  • Username

  • Password

  • Token URL

  • API version

Step 1: Create New User Account

  • Go to Home page of Salesforce and click Setup in the top right menu bar.
  • In the left side you will see a Quick Find search textbox, type Users.
  • Click Users and it will redirect you to the Users setup page.
  • Click New User button and fill up the form:
    • First Name
    • Last Name
    • Email
    • Set User License to "Salesforce"
    • Choose an appropriate Profile (see below)
      • Profile and Permission Set Configuration
        • Create a custom profile or clone an existing minimal profile:
          • Clone the "Standard User" profile and name it something like "Log Extraction Service" or whatever you prefer.
          • Remove unnecessary permissions, keeping only:
            • API Enabled
            • View Setup and Configuration
            • Specific object permissions for logs you need to extract
        • Essential permissions for log extraction:
          • API Enabled - Required for programmatic access
          • View All Data - If you need comprehensive log access
          • Read access to specific objects containing log data
    • Scroll down to the bottom and check the box that says Generate new password and notify user immediately.
    • Click Save.
  • Open the account and set a new password.

Please take note of the Email Address, Username and Password associated with this account, as they will be required during the API and integration setup process.

Step 2: Salesforce instance URL

This is the URL of your Salesforce Organization.

  • Salesforce Classic: Given the example URL https://na9.salesforce.com/home/home.jsp, the Salesforce Instance URL is extracted as https://na9.salesforce.com.

  • Salesforce Lightning: The instance URL is available under your user name in the View Profile tab. Use the correct instance URL in case of Salesforce Lightning because it uses *.lightning.force.com but the instance URL is *.salesforce.com.

Ensure the Instance URL is noted, as it will be used in both API creation and integration steps.

Step 3: Client Key and Client Secret for Authentication

To use this integration, you need to create a new Salesforce Application using OAuth. Follow these steps to create a connected application in Salesforce:

  • Log in to Salesforce with the user credentials you want to collect data with.

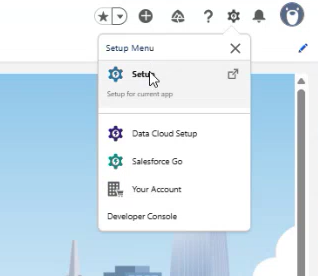

  • Click Setup in the top right menu bar.

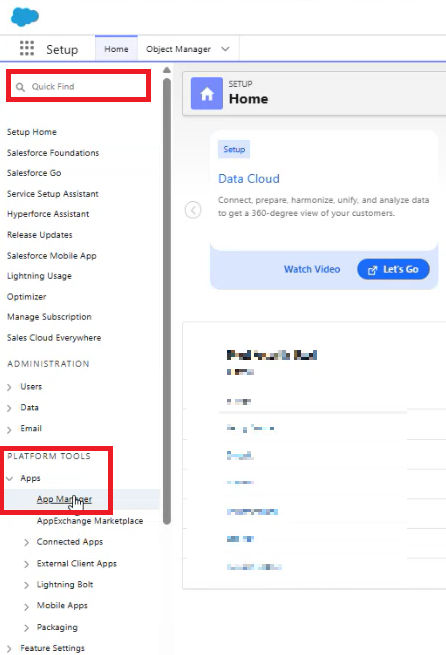

  • In the Quick Find textbox, search for App Manager or you can scroll down to PLATFORM TOOLS and select App Manager.


  • In the upper right corner, choose the New External Client App.

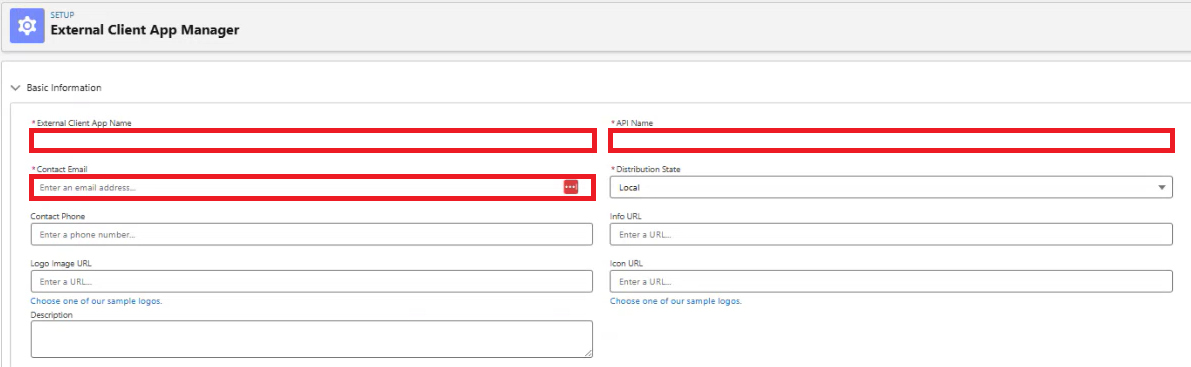

  • Provide a name for the connected application. This name will be displayed in the App Manager and on its App Launcher tile.

  • Enter the API name. The default is a version of the name without spaces. Only letters, numbers, and underscores are allowed. If the original app name contains any other characters, edit the default name.

  • Enter the email address of the new account you created earlier.

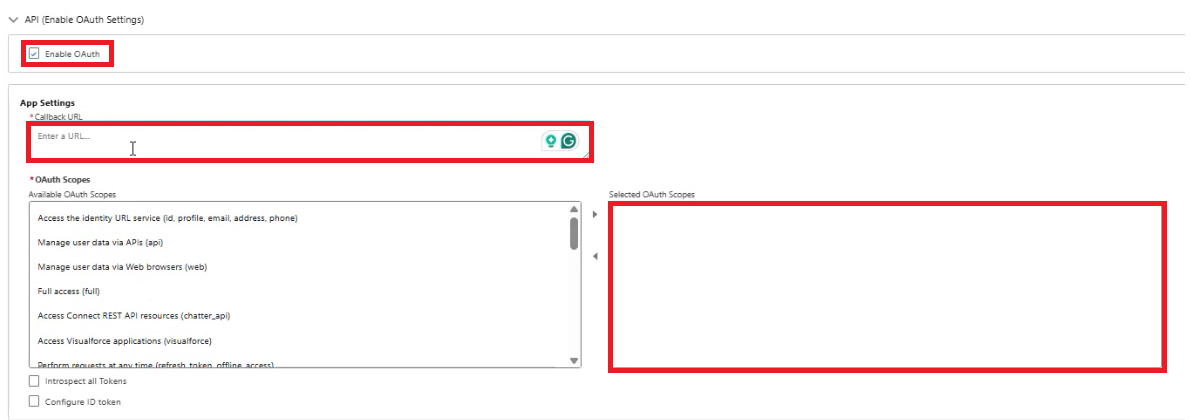

  • Under the API (Enable OAuth Settings) section, check the box for Enable OAuth Settings.

  • In the Callback URL field, enter the instance URL as specified in Salesforce instance URL. Example URL: https://na9.salesforce.com

  • Select the following OAuth scopes to apply to the connected app:

    • Manage user data via APIs (api)

    • Perform requests at any time (refresh_token, offline_access)

    • (Optional) If you encounter any permission issues during data collection, add the Full access (full) scope.

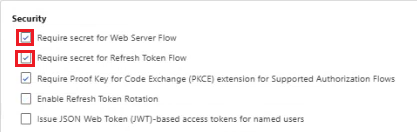

  • Select Require Secret for the Web Server Flow to require the app's client secret in exchange for an access token.

  • Select Require Secret for Refresh Token Flow to require the app's client secret in the authorization request of a refresh token and hybrid refresh token flow.

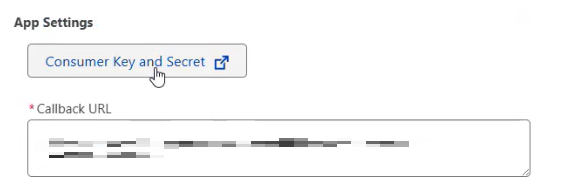

  • Then scroll up above the Callback URL on the App Settings you will see the Consumer Key and Secret button, click it.

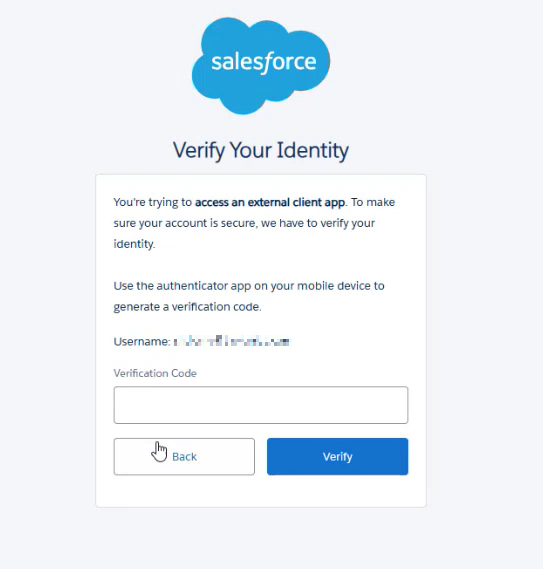

  • It will create another tab. Verify the user account by entering the Verification Code.


  • Copy the Consumer Key and Consumer Secret from the Consumer Details section. These values should be used as the Client ID and Client Secret, respectively, in the integration.


  • Close that tab and go back to the External Client App Manager. Click Save.

Step 4: Username

Provide the Username of the new account that you created earlier.

Step 5: Password

Please provide the password you set upon accessing the new account.

Note:
When using a Salesforce instance with a security token, append the token directly to your password without spaces or special characters. For example, if your password is Password and your security token is 12345 enter: Pasword12345

Step 6: Token URL

  • Use the token URL to obtain authentication tokens for API access.

  • For most Salesforce instances, the token URL follows this format: https://login.salesforce.com/services/oauth2/token.

  • If you're using a Salesforce sandbox environment, use https://test.salesforce.com/services/oauth2/token instead.

  • For custom Salesforce domains, replace login.salesforce.com with your custom domain name. For example, if your custom domain is mycompany.my.salesforce.com, the token URL becomes https://mycompany.my.salesforce.com/services/oauth2/token. This applies to Sandbox environments as well.

  • In the Salesforce integration, we internally append /services/oauth2/token to the URL. Make sure that the URL you provide in the Salesforce integration is the base URL without the /services/oauth2/token part. For example, if your custom domain is mycompany.my.salesforce.com, the complete token URL would be https://mycompany.my.salesforce.com/services/oauth2/token, but the URL you provide in the Salesforce integration should be https://mycompany.my.salesforce.com. In most cases, this is the same as the Salesforce instance URL.

NOTE: Salesforce Lightning users must use URL with *.salesforce.com domain (similar to the Salesforce instance URL) instead of *.lightning.force.com because the Salesforce API does not work with *.lightning.force.com.

Step 7: API Version

To find the API version:

  • Go to the search textbox and type Api Version. Click the first Api Version on the list.

Reference: https://www.integrate.io/blog/salesforce-rest-api-integration/

Please provide these credentials and send it to CyTech Support:

  • Salesforce instance URL

  • Client key and client secret for authentication

  • Username

  • Password

  • Token URL

  • API version



                      If you need further assistance, kindly contact our support at support@cytechint.com for prompt assistance and guidance.
